DrainPro Hot Liquor Tank – Bottom Drain Brewing Vessel

The DrainPro Hot Liquor Tank is built for serious pilot and small-scale electric brewing systems. All sizes feature mirror-polished 304 stainless steel, laser-etched volume markings, and seven welded tri-clamp ports—including HERMS coil ports, a true bottom drain, a high recirculation port, rear-mounted ports for heating and temperature control, and a CIP-ready lid port. The 50G size includes an eighth port for a second heating element. Designed for performance, speed, and clean integration, it’s the professional standard for HERMS-based hot water control.

$653.00 - $1,705.00$937.00 - $2,415.00
Size
Description

Overview

The DrainPro Hot Liquor Tank is Bräu Supply’s dedicated HLT for serious pilot and small-scale electric brewing systems. All sizes feature mirror-polished 304 stainless steel, laser-etched volume markings, and seven welded tri-clamp ports—including front-mounted HERMS coil ports, a true bottom drain, a high recirculation return, and rear-mounted ports for a heating element and temperature sensor. The 50G size includes an eighth port to accommodate a second heating element for faster heat-up times. A CIP-ready port is centered on the domed lid for integration with a spray ball. Designed for fast, clean, and efficient brewing, the DrainPro HLT is built to perform in three-vessel HERMS systems.

Key Features

  • Mirror-polished 304 stainless steel, inside and out
  • Seven welded 1.5" tri-clamp ports (eight on 50G)

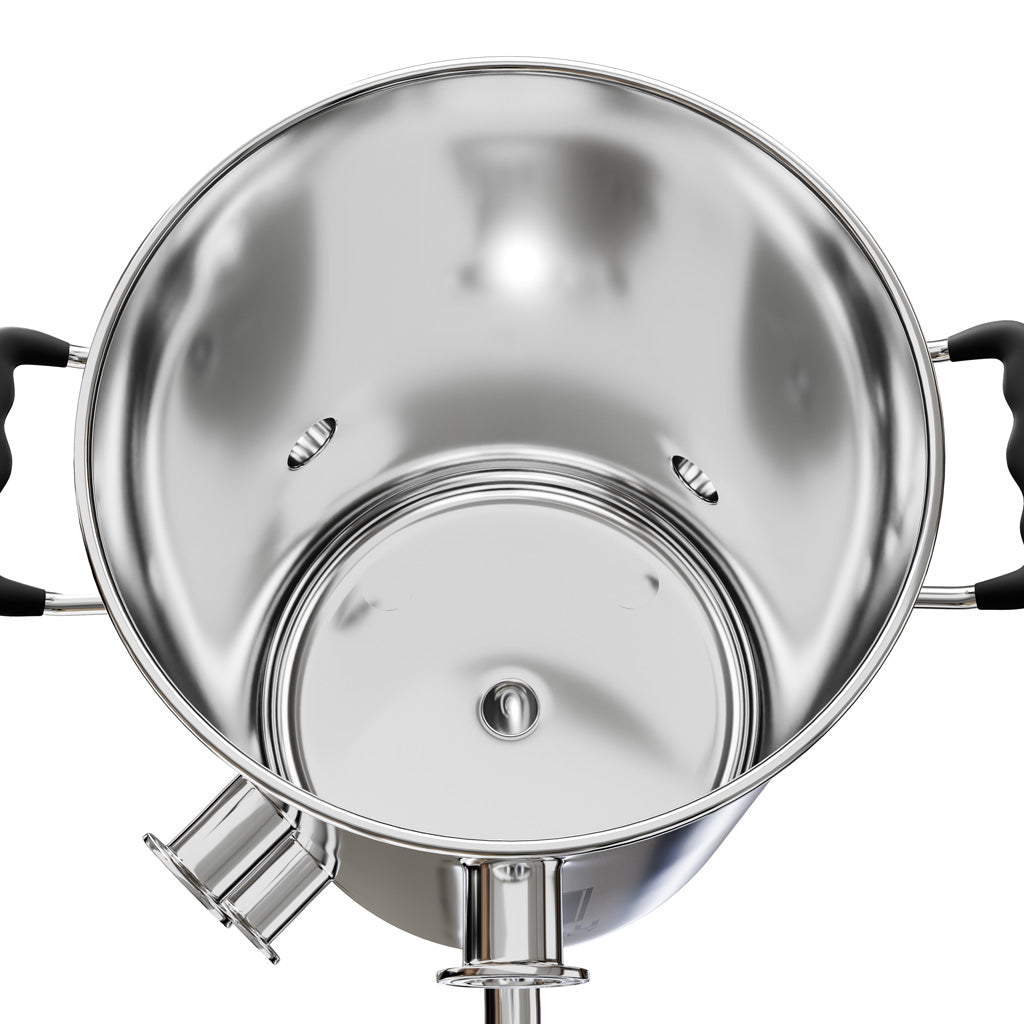

  • True bottom drain for complete emptying
  • Front-mounted HERMS coil inlet and outlet ports
  • High-mounted hot liquor return port
  • Rear ports for heating element and temperature probe
  • CIP-compatible lid with center 1.5" TC port
  • Laser-etched internal volume markings (gallons and liters)
  • Silicone-coated handles and welded stainless steel legs

Compatible Accessories

  • HERMS coil (1.5" TC ports)
  • Low-watt-density heating elements (1650W, 2500W, 5500W)
  • SV1 and SV2 Brew Controller
  • CIP spray ball (lid-mounted)
  • Pumps and QD water connection kits

Available Sizes

Available in 10G, 20G, 30G, and 50G sizes. All vessels are fully modular. The 50G size includes an additional rear port to support dual-element electric heating. Designed to integrate seamlessly into Bräu Supply’s three-vessel HERMS brewing systems.
