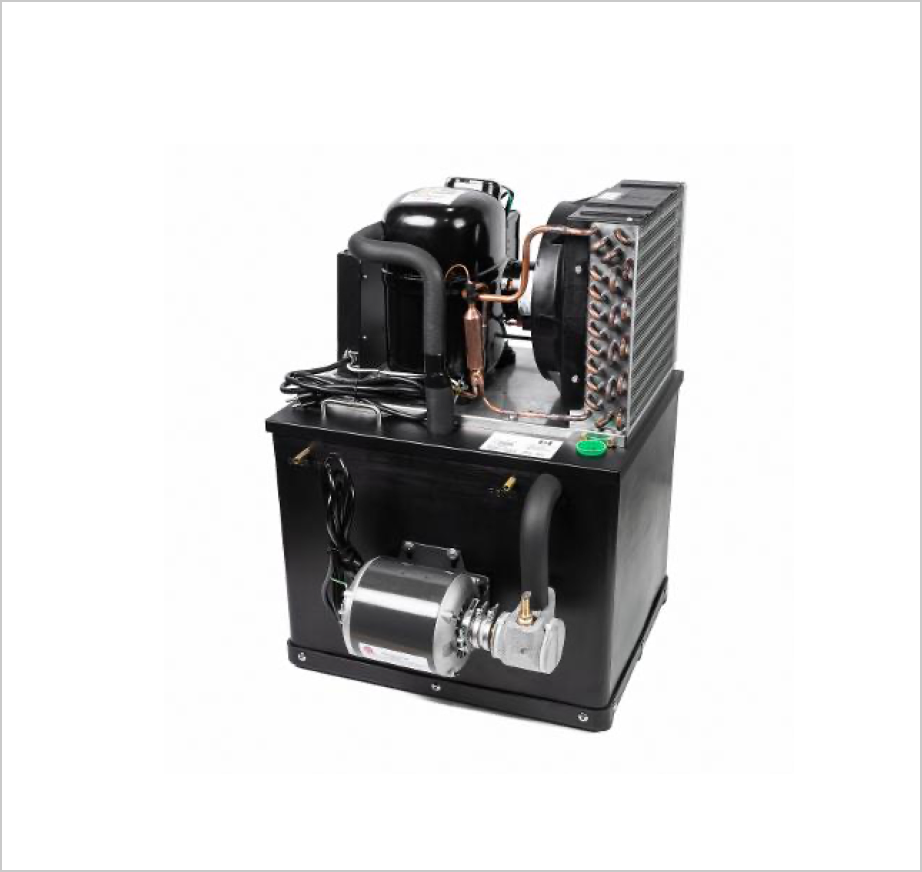

MCED BEF‑075 Glycol Chiller – Fermentation Cooling with Chiller Watch™ and 6,180 BTU/hr

Heavy-Duty Fermentation Cooling with Smart Monitoring

The MCED BEF‑075 is a high-capacity glycol chiller designed for serious cold-side process control in commercial brewing and beverage production. With an upgraded 3/4 HP compressor, it delivers 6,180 BTU/hr of chilling performance and features a 17-gallon insulated glycol reservoir to manage high thermal loads.

Like all MCED chillers, it’s built in Canada and features integrated Chiller Watch™ technology for remote system monitoring and diagnostics. It operates on standard 120V power and includes one high-flow glycol circulation pump, with options to add a second or third pump for multi-vessel setups.

Note: This product ships via LTL freight and does not qualify for standard shipping rates when ordered alone.


BEF-075 Data Sheet
See full specifications  under the Technical Details tab.

Description
Technical Details

Engineered For

  • Larger breweries and commercial fermenter banks
  • Wine, cider, or kombucha production
  • Cold crashing and conditioning of large batch volumes
  • Centralized chilling for multi-vessel systems

Design Highlights

  • Powerful 6,180 BTU/hr cooling capacity at 80°F ambient
  • Integrated Chiller Watch™ for remote monitoring and alerts
  • 3/4 HP compressor with 17-gallon glycol reservoir
  • Includes one built-in circulation pump (up to three optional)
  • Runs on 120V via NEMA 5‑15P plug — no hardwiring needed
  • Built in Canada with field-serviceable components for long-term use

BEF‑075 Technical Specifications

  • Cooling Capacity: 6,180 BTU/hr (at 80°F ambient)
  • Compressor: 3/4 HP
  • Reservoir Volume: 17 gal (US)
  • Pump: 1 built-in circulation pump (2nd and 3rd optional)
  • Pump Flow Rate: 50 GPH
  • Voltage: 120V / 60Hz
  • Plug: NEMA 5‑15P (standard wall outlet)
  • Running Amps: 13.5 A
  • Min Circuit Ampacity: 14.5 A
  • Max Circuit Fuse: 25 A
  • Refrigerant: R513a (17.5 oz charge)
  • Operating Pressure: 18 psi (low), 150 psi (high)
  • Weight: 135 lb
  • Dimensions: 27.25″ (W) × 23.5″ (D) × 30.0″ (H)

Applications

  • Fermentation temperature control
  • Cold crashing and stabilization
  • Kombucha, wine, or cider production at commercial scale
  • Multi-tank or zone fermentation setups

Shipping Notes


This unit ships via LTL freight only and is not eligible for standard shipping rates when ordered on its own.


When ordered with a brewing system, it ships on the same pallet with no added freight charge.


Please contact us for a freight quote before placing a standalone order.
