MCED BFT‑67 Glycol Reservoir – 67 gal Modular Fermentation Cooling Platform

Modular High-Capacity Glycol Reservoir for Multi-Zone Fermentation Cooling

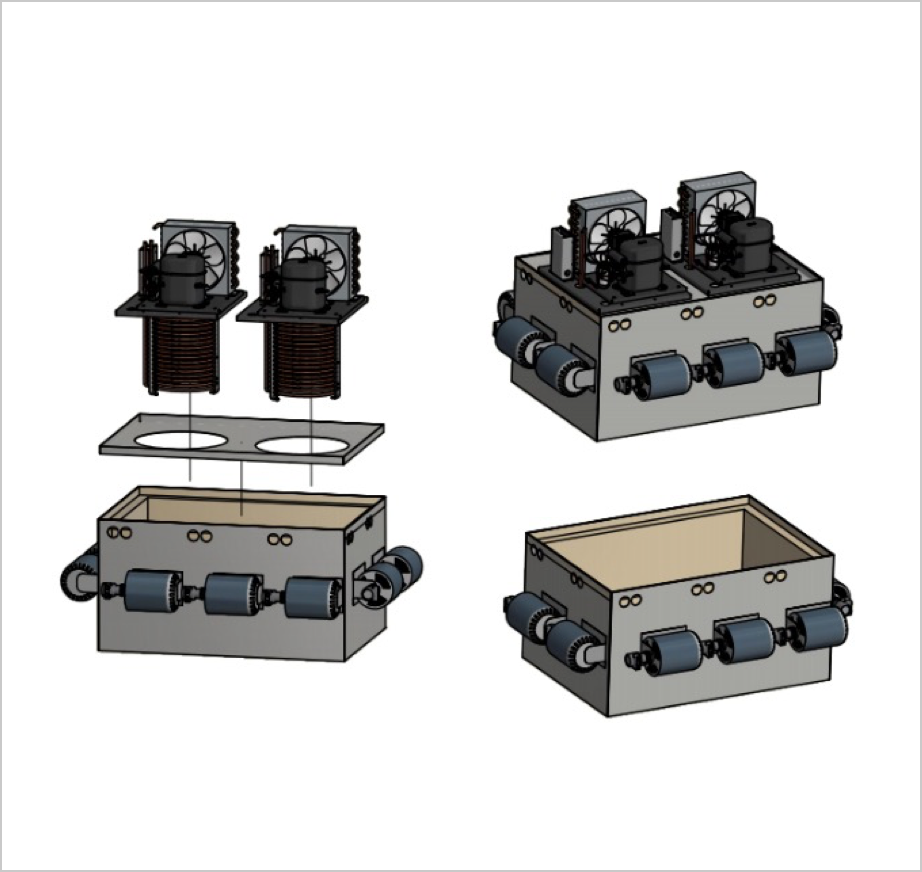

The MCED BFT‑67 is a high-capacity glycol bath and pump deck platform engineered for scalable fermentation temperature control. With a massive 67-gallon reservoir, it’s designed to integrate up to 10 independent 50 GPH circulation pumps and combine the cooling capacity of up to two upperdeck chiller units into a single, centralized system.

Built for commercial fermentation operations, the BFT‑67 is fully compatible with MCED’s full line of high-capacity chillers and allows users to create a modular, expandable glycol management solution using standard 120V power.

Note: This product ships via LTL freight and does not qualify for standard shipping rates when ordered alone.

BFT-67 Data Sheet

Engineered For

• Large-scale breweries and commercial fermentation setups


• Centralized glycol distribution for multiple tanks or fermentation zones


• High-volume kombucha, cider, and wine production


• Multi-pump, multi-chiller system integration

Design Highlights

• Massive 67-gallon glycol bath capacity


• Supports up to 10 x 50 GPH circulation pumps (independently controllable)


• Integrates with up to two upperdeck chiller units



• Standard 120V operation with NEMA 5‑15P plug(s)


• Modular design for easy expansion and serviceability


• Compatible with BEF‑04 through BEF‑500 chiller models


• Built in Canada for professional-grade cold-side process systems

BFT‑67 Technical Specifications

•
  Reservoir Capacity: 67 gal (US)


•
  Pump Capacity: Up to 10 circulation pumps @ 50 GPH each


•
  Pump Voltage: 120V


•
  Plug: NEMA 5‑15P


•
  Head Pressure: 26 ft


•
  Running Amps: 6.5 A per pump


•
  Weight (Empty): 130 lb


•
  Weight (Filled): 690 lb


•
  Weight per Motor/Pump Assembly: 15 lb


•
  Dimensions: 41″ (W) × 29″ (D) × 22″ (H) (bath only)

Chiller Compatibility

• BEF‑04


• BEF‑05


• BEF‑075


• BEF‑08


• BEF‑100


• BEF‑150


• BEF‑300


• BEF‑500

Applications

• Multi-vessel fermentation cooling


• Centralized glycol distribution


• Process control for commercial-scale beverage production


• Scalable cold-side system integration
