Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter
Unitank – 40 Gal (150L) Jacketed Conical Fermenter

Unitank – 40 Gal (150L) Jacketed Conical Fermenter

Premium 40 Gal Jacketed Conical Fermenter for Pressure Fermentation

The Bräu Supply Unitank is a fully jacketed 40-gallon (150L) stainless steel fermenter built for pilot-scale and nano breweries. Pressure-rated to 15 psi and constructed from sanitary 304 stainless steel, it's ideal for pressure fermentation, cold crashing, closed transfers, and carbonating in-tank.

The fully welded glycol jacket offers reliable temperature control using a glycol chiller or tap water—no internal coils required. With tri-clamp fittings throughout and pro-grade hardware included, the 1 BBL Unitank is ready for serious brewing environments.

Whether you're producing small-batch commercial beer or pushing your home brewery to the next level, this Unitank delivers uncompromising performance and flexibility.

  • 304 stainless steel, pressure-rated to 15 psi
  • Fully jacketed for glycol or tap water chilling
  • Includes blow-off assembly, pressure gauge, sample and butterfly valves
  • Tri-clamp ports throughout for sanitary operation
  • Adjustable stainless legs with leveling feet
  • Designed for pressure fermentation, CIP, and closed transfers





$3,916.00
Description

Professional 1 BBL Jacketed Fermenter with Tri-Clamp Flexibility

The Bräu Supply 40 Gal (150L) Unitank is the ultimate upgrade for brewers running pilot systems, small-batch production, or advanced home setups. This fully jacketed, pressure-rated fermenter enables everything from warm ale fermentation to cold crashing, spunding, and in-tank carbonation—under complete control and with zero oxygen exposure.

Full-Coverage Glycol Jacket

No internal cooling coils, no compromises. Our welded glycol jacket wraps the entire cylindrical body and cone, delivering precise, sanitary chilling without restricting internal access. Just connect to your glycol chiller or tap water loop and go.

Pressure Fermentation and Closed Transfers

Rated to 15 psi, the 1 BBL Unitank is built for pressure fermenting, spunding, and transferring to kegs or brite tanks without ever exposing your beer to oxygen. The included pressure gauge, PRV, and blow-off cane ensure safe, closed-loop operation.

Sanitary, CIP-Compatible Design

Every port is tri-clamp. Every weld is sanitary. And every part of this tank is built for efficient cleaning with CIP spray balls or manual disassembly. No threads, no funky seals—just clean beer from start to finish.

What's Included

  • Blow-off cane with butterfly valve
  • Tri-clamp pressure gauge and pressure relief valve
  • Sample valve and butterfly racking valve
  • Clamps, gaskets, and tri-clamp fittings
  • Adjustable stainless legs with leveling feet

Technical Specs

  • Capacity: 40 gal (150L)
  • Material: 304 stainless steel
  • Pressure Rating: 15 psi (1 bar)
  • Cooling: Fully welded glycol jacket (1.5" tri-clamp ports)
  • Footprint: Pilot-scale footprint with adjustable legs

Built for brewers who demand complete fermentation control and long-term durability, the Bräu Supply 1 BBL Unitank is the perfect fermentation vessel for clean, scalable results.

Technical Details

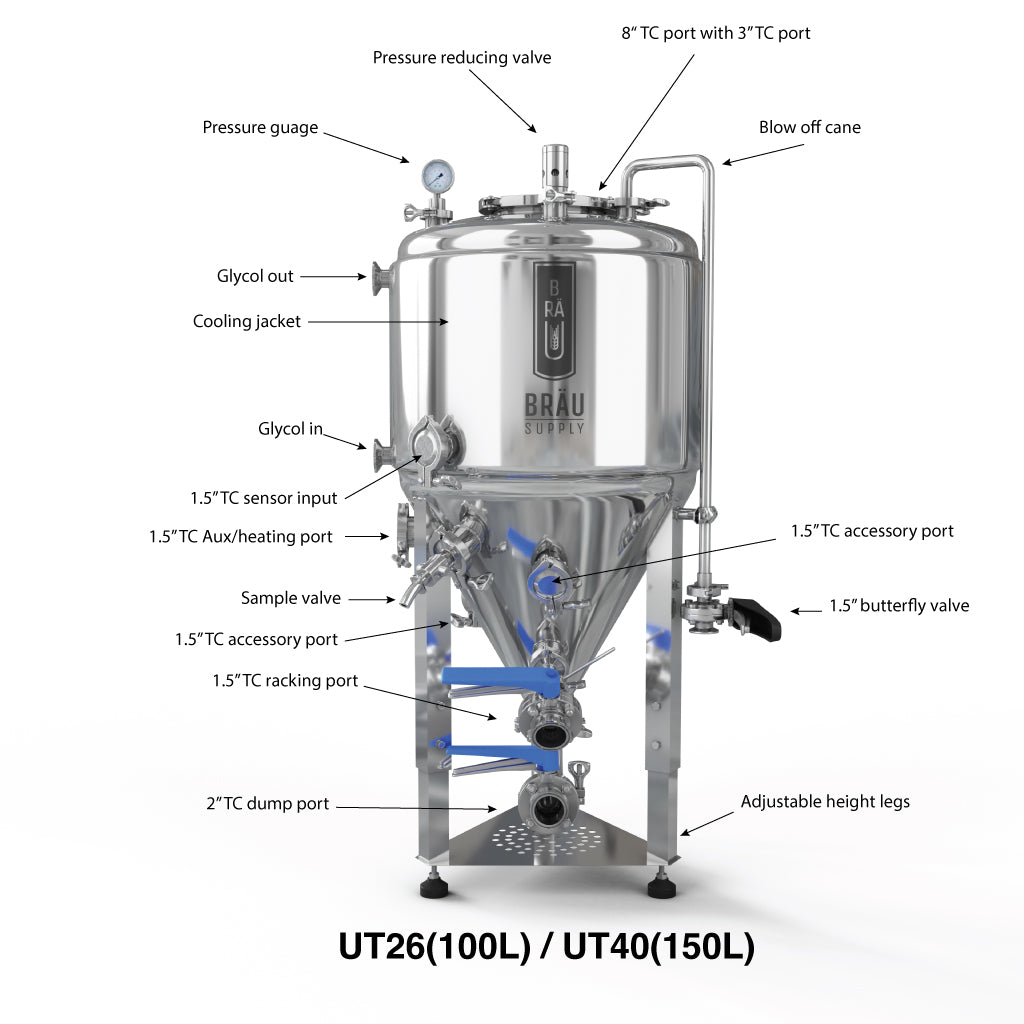

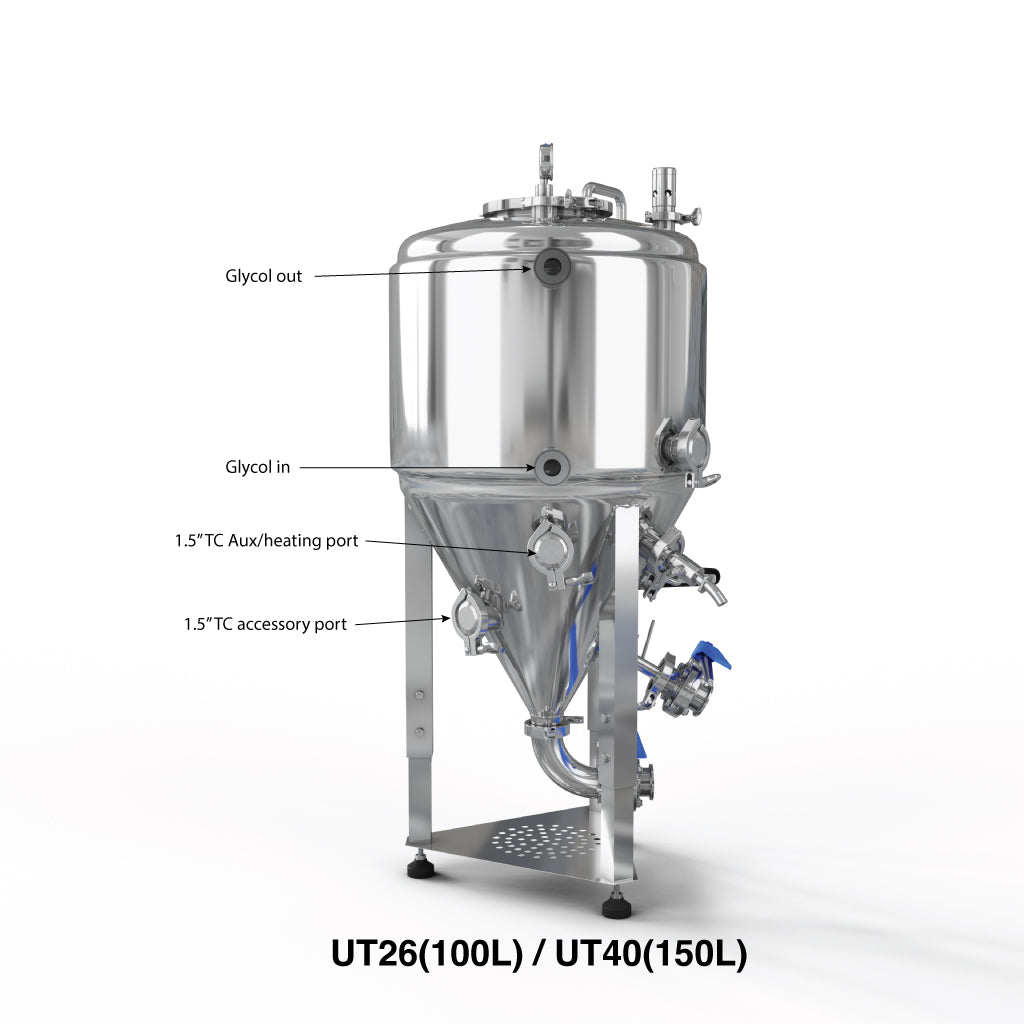

Unitank jacketed conical fermenter dimensions and specs
