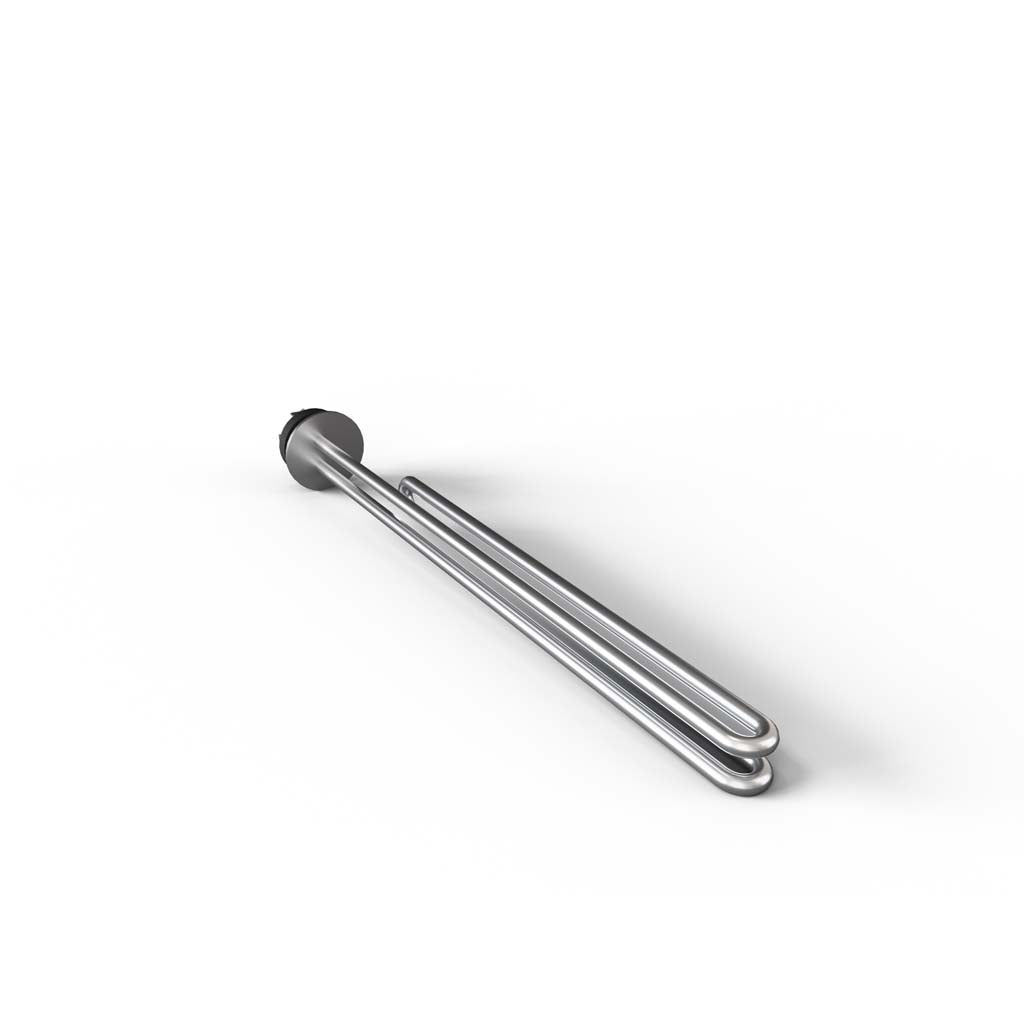

1650W ULWD Tri-Clamp Brewing Element – 120V

Compact ULWD heating element for small-volume brewing and precise temperature control.

The 1650W Brewing Element is an ultra-low watt density (ULWD) heating element designed for small batch brewing, HERMS coils, and maintaining stable mash temperatures. Its low watt density allows controlled heat input without scorching, making it well suited for recirculating mash systems and auxiliary heating applications.

The element mounts via a 1.5" tri-clamp flange for quick, sanitary installation into compatible vessels or HERMS coil ports.

Constructed from mirror-polished 304 stainless steel and measuring 9" from flange face to element tip, the element is easy to clean with a simple PBW soak—no scrubbing required.

Specifications

•
  Power — 1650W


•
  Voltage — 120V AC


•
  Watt Density — ULWD (Ultra-Low Watt Density)


•
  Connection — 1.5" Tri-Clamp


•
  Element Material — Mirror-polished 304 stainless steel


•
  Length — 9" from flange face to element tip


•
  Element Plug — L6-30

Compatibility

• All Bräu Supply kettles


• Most vessels with 1.5" tri-clamp element ports

Available Configurations

• Element Only


•
  Element with Cord — Includes 120V power cable with L6-30R (element side) to NEMA 5-15P for standard wall outlets

Care & Cleaning

The mirror-polished finish allows easy cleanup without scrubbing. Soak in PBW and wipe clean after use.

Important Notes

• Always operate fully submerged — dry firing will damage the element.


• Use only on a GFCI-protected 120V circuit.


• Designed for brewing systems; not intended for residential water heating.

Learn more in our guide: How to Clean Brewing Elements Effectively.
