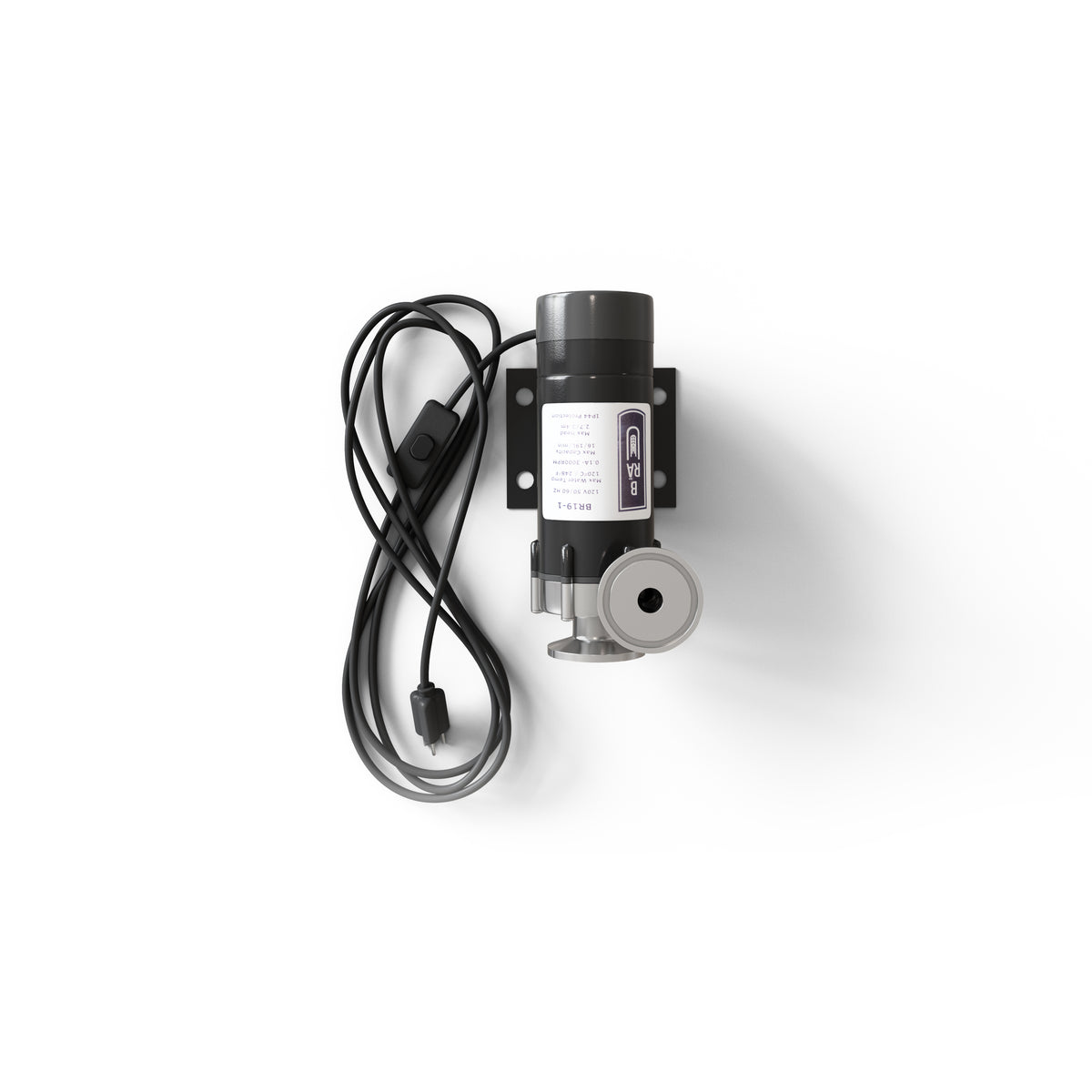

Brew Pump For Wort Transfer
$150.00 - $300.00
16 reviews
Description
Elevate your brewing efficiency with the BR Series Magnetic Drive Pumps – the ultimate solution for wort transfer. Engineered for high temperatures up to 120ºC (248ºF), these pumps redefine reliability in the brewing process. Unlike traditional chugger pumps, our BR series is sealed, offering IP44 protection, ideal for the wet environments of a brewery.
Key Features:
Silent Operation: Enjoy a quiet brewing experience with the silent operation of BR series pumps.
IP44 Protection: Sealed pump bodies provide robust protection, ensuring durability in brewery surroundings.
Efficient Performance: Witness impressive head and flow capabilities for a pump of this size.
Maintenance-Free: No need for lubricants, minimizing the risk of liquid contamination.
Steel Mounting Plate: Ready for permanent installation, the pumps come with a steel mounting plate.
Serviceable Pump Heads: The pump head is easily serviceable and can be mounted in any direction for versatile applications.
Technical Details
Dimensions and Specifications:
BR19:
1/2" MPT fittings or 1.5" Tri-Clamp fittings
Max capacity: 19L(5 gal)/minute
Max head: 3.4m(11 feet)
Dimensions: 200mm (7.9") L x 82mm(3.2") W x 101mm(4") H
Power draw: 0.1A at 120V
Weight: 1.8kg(4lbs)
BR40:
3/4" MPT fittings
Max capacity: 40L(10 gal)/minute
Max head: 6.5m(21 feet)
Dimensions: 274mm(10.8") L x 120mm(4.7") W x 130mm(5.1") H
Power draw: .54A at 120V
Weight: 4kg(8.8 lbs)
Discover brewing excellence with the BR Series – the optimal choice for seamless wort transfer. Unleash the power of BR19 and BR40 for unmatched brewing performance and incredible value.
I bought two pumps because I was tired of lugging water by hand for 5-gallon batches and had no desire to do the same as I move to 10-gallon batches. These pumps are extremely quiet, easily move water and wort from vessel to vessel, and flow rates are never an issue (full disclosure: my system has no significant vertical displacement). I've been extremely happy with the pumps and would not hesitate to buy again.
I did look into other pumps prior to purchase and got these based on price, noise, and performance. I like how quiet they are, the IP44 rating (but do use GFCI), and SS heads being standard. Only wish is they had an in-line switch - but I can easily adjust for that.
J
Jim
First pump - no regrets
I bought two pumps because I was tired of lugging water by hand for 5-gallon batches and had no desire to do the same as I move to 10-gallon batches. These pumps are extremely quiet, easily move water and wort from vessel to vessel, and flow rates are never an issue (full disclosure: my system has no significant vertical displacement). I've been extremely happy with the pumps and would not hesitate to buy again.
I did look into other pumps prior to purchase and got these based on price, noise, and performance. I like how quiet they are, the IP44 rating (but do use GFCI), and SS heads being standard. Only wish is they had an in-line switch - but I can easily adjust for that.
J
Jim
Brau Pump
I purchased two of these in late 2022 and have used them to brew 4 batches.. They do the job of transferring hot water and wort well. They're quiet. efficient, and easy to clean.. Would definitely purchase again.
C
Chuck N.
A great pump!
I purchased this pump specifically to transfer hot liquor to the sparge arm and the sparging of grain in my Unibrau 20-gallon system. This past Saturday, I got to put it to the test and it performed flawlessly and I couldn't be happier with my purchase. It's always great when a product performs as desired.
C
Chuck N.
A great pump!
I purchased this pump specifically to transfer hot liquor to the sparge arm and the sparging of grain in my Unibrau 20-gallon system. This past Saturday, I got to put it to the test and it performed flawlessly and I couldn't be happier with my purchase. It's always great when a product performs as desired.
