Avoiding a stuck mash and dry firing a brewing element when brewing

The short answer: a stuck mash is a grain bed packed so tight that wort can’t flow through it. Prevent it with a coarser crush, rice hulls for sticky grists (wheat, rye, oats), and a gentle pump rate. Dry firing is switching on an electric element that isn’t fully covered by liquid, and it can ruin the element in seconds. Always cover the element before you switch it on, and slow the pump if wort starts piling up above the grain.

Problem	Usual cause	Fix
Flow slows or stops	Crush too fine; lots of wheat, rye or oats; compacted grain bed	Coarser crush; rice hulls (about 5% of the grist); stir, let it settle, restart slowly
Wort rises above the grain, level below drops	Pumping faster than the grain bed drains	Throttle the pump with its outlet valve
Element exposed	Too little water, or too much wort held up above the grain	Check the level before power on; keep the pump throttled
Element dry fired	—	Switch off and unplug; let it cool; inspect before using it again

A temperature controller reads temperature, not liquid level, so it won’t stop a dry fire. Watching the level is your job.

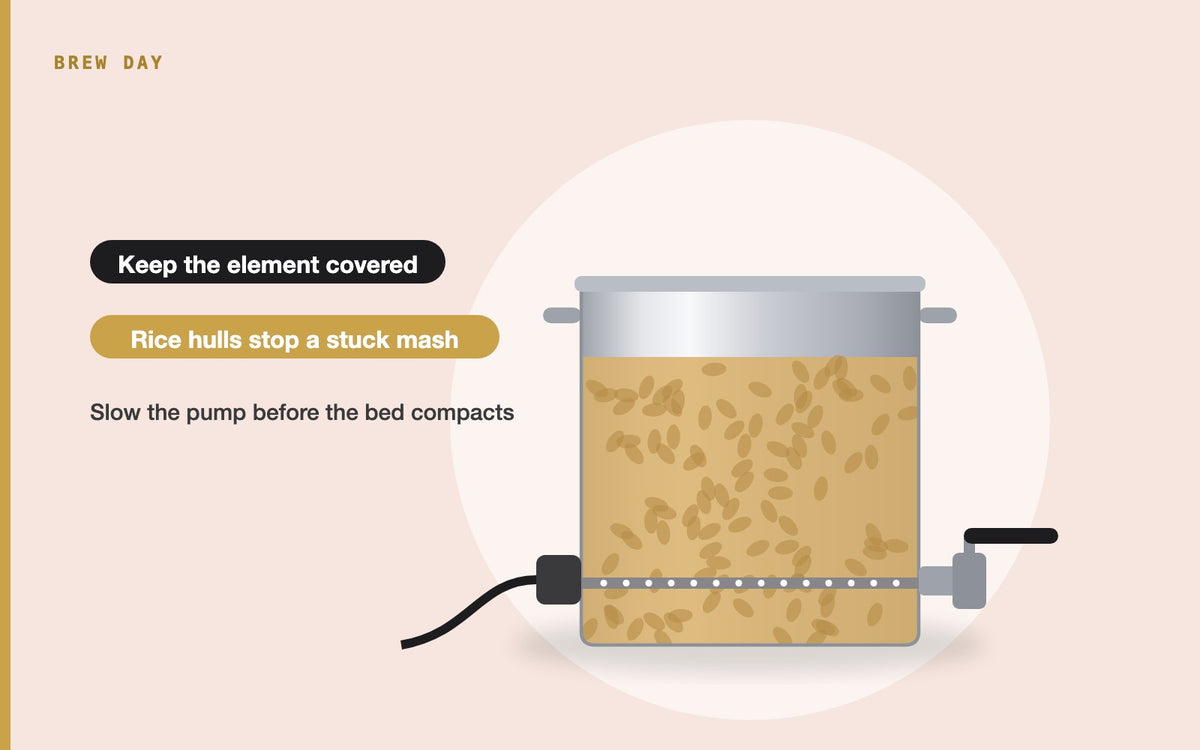

Why a recirculating mash sticks, and how that dry-fires an element

The pump pulls wort from under the grain and returns it on top. If it pulls faster than wort can drain down through the grain, the suction packs the bed tighter, the flow slows even more, and wort piles up above the grain.

That wort has to come from somewhere. On a single-vessel system like the Unibräu, the element sits in the kettle below the grain basket, so wort held up above the grain lowers the level around the element. On a BräuPro, the element is in the Unitank and the pump sends wort up to the mash tun; pump faster than the grain bed drains back, and the level in the Unitank drops. Either way, a stuck mash can become a dry fire.

How to prevent a stuck mash

1. Crush toward the coarse side. For a recirculating system, a roller gap of about 0.040–0.045" (1.0–1.15 mm): husks mostly whole, kernels cracked into a few pieces.
2. Add rice hulls when wheat, oats or rye are a big share of the grist, about 5% by weight. With a lot of rye or oats, a beta-glucan rest at 104–113°F (40–45°C) also thins the mash.
3. Mash in slowly, stirring out every dough ball.
4. Let the grain settle for about 5 minutes before you start the pump.
5. Start slow. Open the pump’s outlet valve about a quarter turn, then open it gradually.
6. Keep no more than about an inch (2.5 cm) of wort above the grain. If it climbs, close the valve down a little.
7. Throttle on the outlet side only. Closing the inlet starves the pump.

How to free a stuck mash

1. If the level has dropped near the element, switch the element off first.
2. Close the pump outlet valve or switch the pump off.
3. Stir the grain bed gently to break it up.
4. Let it settle for a few minutes.
5. Restart slowly, with the valve barely open, and open it gradually.
6. If it’s still stuck, stir in a handful of rice hulls, let it settle again, and run the pump slower for the rest of the mash.

How to avoid dry firing

• Cover the element before you switch it on. Fill past it first, every time.
• Plug and unplug the element only with the controller off.
• Watch the level for the first few minutes of recirculation, and every time you change the flow.
• On the Unibräu, the holes near the top of the grain basket are an overflow, not a target. Keep the wort no more than about an inch above the grain.
• Switch the element off before you drain the kettle to the fermenter.

After a dry fire

1. Switch off and unplug. Don’t touch the element until it has cooled.
2. Inspect it. A warped, bulged, cracked or heat-tinted sheath means it’s damaged.
3. Replace it if it looks damaged or trips the GFCI when you power it up. Dry firing isn’t covered by the element warranty.

Replacement elements: 1650W 120V and 5500W 240V.

Frequently asked questions

Is a stuck mash the same as a stuck sparge?

It’s the same problem at a different stage. A stuck mash happens while you recirculate; a stuck sparge happens while you drain and rinse the grain. The causes and fixes are the same.

Does mash thickness matter?

Yes. Thinner mashes flow more easily. Single-vessel and full-volume mashes run thin, often 2.5 to 3.5 qt of water per lb of grain (5.2 to 7.3 L/kg), which helps.

Can a stuck mash ruin the beer?

Not usually. It costs time and some efficiency. The bigger risk is a dry-fired element.

Related guides

Lautering and sparging, mash efficiency, where to measure mash temperature and electric brewing for beginners.
