BRÄUPRO 5G – ALL-IN-ONE ELECTRIC BREWING SYSTEM WITH 8 GAL UNITANK

Brew, chill, and ferment—all in one 8-gallon conical Unitank.

The BräuPro 5G is a fully integrated electric brewing system that pairs a dedicated mash tun with an 8-gallon (35L) conical Unitank, delivering seamless transitions from mash to fermentation in a single vessel.

Boil directly in the Unitank for chemical-free sanitation. Chill using the built-in jacket with tap water or glycol. Pressure ferment with complete control.
No transfers. No contamination risk. No wasted time.

Ideal for advanced homebrewers and small-batch professionals producing up to 5 gallons of finished beer with repeatable, high-efficiency results.

BräuPro Product Manual

Configuration
Voltage
Add Glycol Chiller
Description

BräuPro - The Ultimate All-in-One Brewing Solution

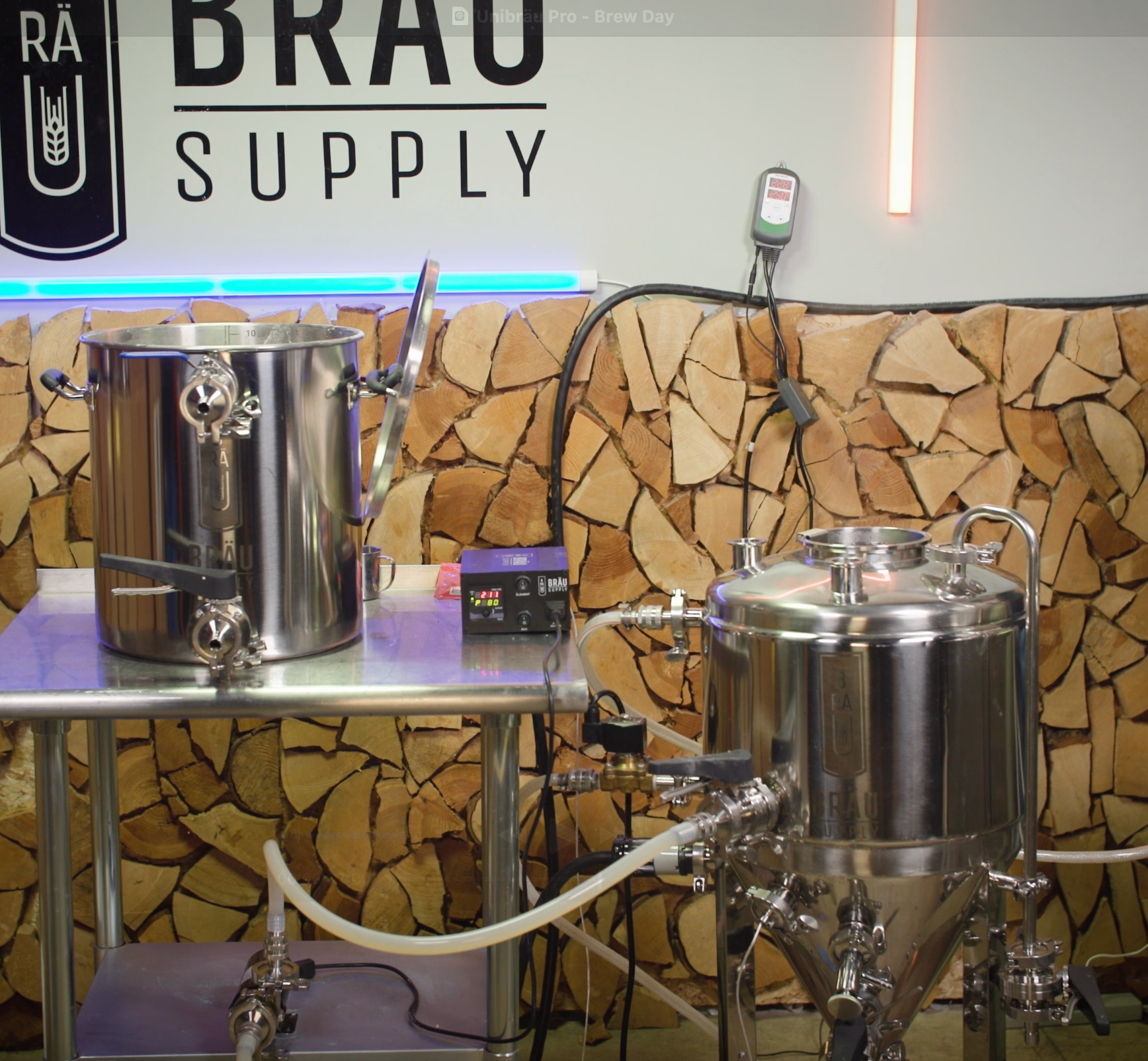

Discover brewing simplicity and efficiency with the BräuPro, the ultimate all-in-one brewing solution. This innovative system combines two vessels – a mash tun and a Unitank fermenter – to streamline your brew day, eliminating the need for a hot liquor tank and boil kettle. Say goodbye to the complexity of four-vessel systems and embrace the future of brewing.

Streamline Your Brewing Process

Brewing with the BräuPro means operating with just two vessels, yet achieving the functionality of four. The mash tun and Unitank fermenter work seamlessly together to enhance efficiency, save space, and simplify your brewing process. With this groundbreaking design, you can brew and ferment in the same Unitank vessel, optimizing your space and eliminating the hassle of managing multiple tanks.

Experience the Benefits

Space Optimization

Enjoy a smaller footprint in your brewing area with the elimination of the hot liquor tank and boil kettle. Maximize efficiency while minimizing space.

Quick Brew Days

With the BräuPro, experience faster brew days. The integrated design and efficient processes mean less time spent on setup and cleanup, allowing you to focus on what matters – brewing exceptional beer.

High Precision

Achieve greater precision in your brewing process, resulting in easily repeatable and consistent results. Say goodbye to guesswork and hello to a more controlled brewing experience.

Safety and Convenience

Unlike other fermenter-based brew systems with overhead hoists, the BräuPro ensures a safe and efficient brewing experience without the need for dangerous equipment.

Efficient Wort Chilling

Utilizing the jacketed fermenter, the BräuPro achieves unparalleled wort chilling efficiency compared to external chillers. Say goodbye to contamination concerns and enjoy the peace of mind that comes with a system designed to prioritize the integrity of your brew.

Contamination-Free Brewing

The closed-loop system of the BräuPro eliminates the need for fluid transfers during the brewing process. This not only minimizes the risk of contamination but also accelerates the brewing timeline, allowing you to focus on the art of brewing without unnecessary complexities.

Chemical-Free Sanitization

With the boil process integrated into the BräuPro, you can bid farewell to chemical sanitizers. Let the natural boiling action do the work for you, ensuring a thoroughly sanitized brewing environment without the need for additional chemicals.

Technical Details

What's Included?

The BräuPro comes complete with everything you need to brew and ferment. Additional helpful items such as a hydrometer, pH meter, and your choice of recipe ingredients are all you need to get started. The system includes essential components like a fermenter blow-off assembly, rotating racking arm, sample valve, and more. For warm climates, a glycol chiller would replace cool water for chilling duties.

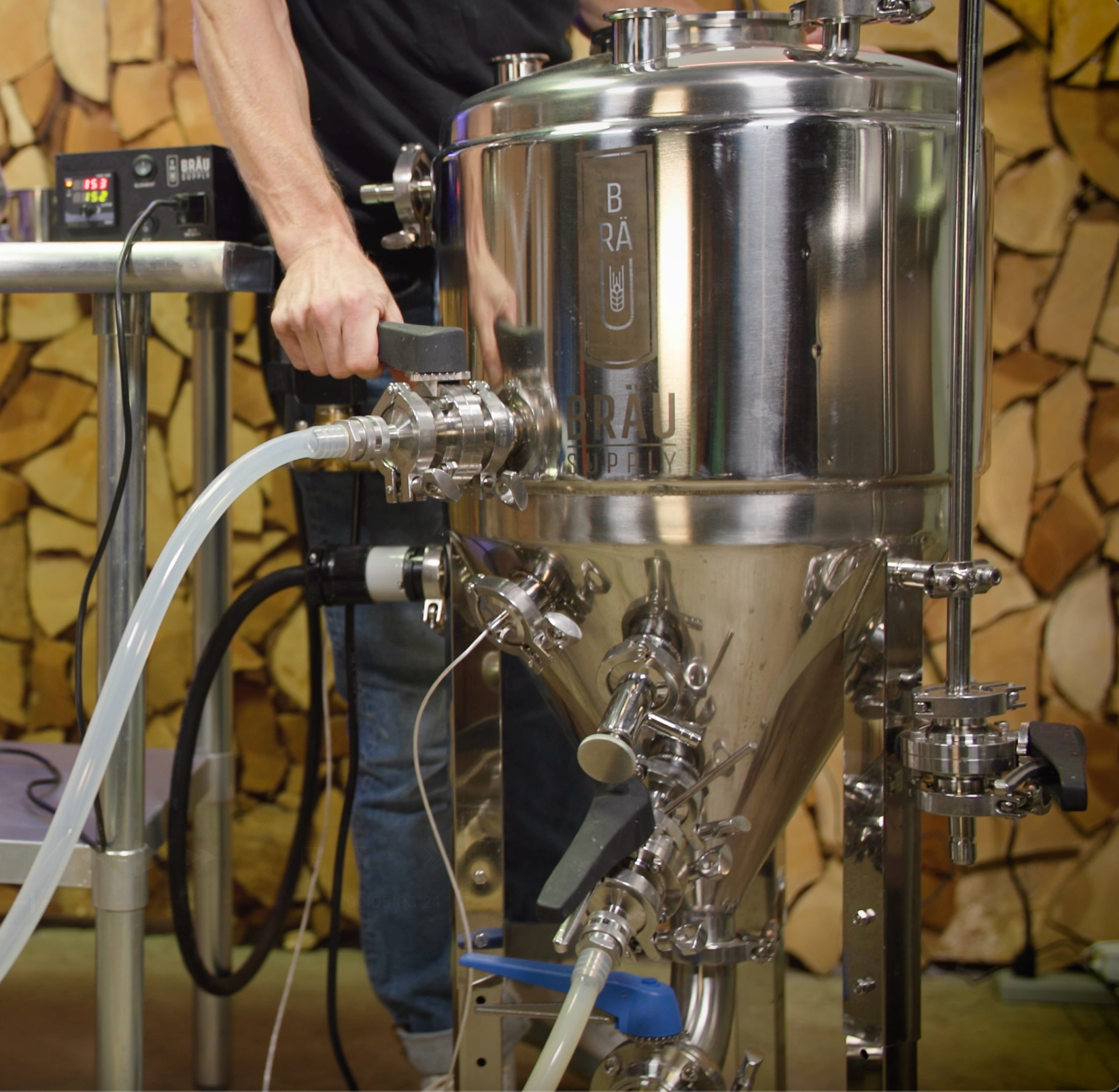

  • Jacketed conical fermenter rated for 15psi in the vessel and 5psi in the jacket
  • Drop in ruler with volume markings
  •  Stainless fermenter blow off assembly
  • Sample valve
  • Analogue pressure gauge 0-30 psi
  • 15 psi pressure reducing valve
  • 2" tri-clamp elbow
  • 2" butterfly valve
  • 2" tri-clamp and gasket x 2
  • 1" ball valve
  • 1.5" butterfly valve x 4
  • 6"-3" tri-clamp cap
  • 6" tri-clamp clamp and gasket
  • 3" cap, clamp and gasket
  • 1.5" tri-clamp and gasket x17
  • 1.5" cap x 2
  • 5500W Brewing element (120V system comes with 1600W brewing element)

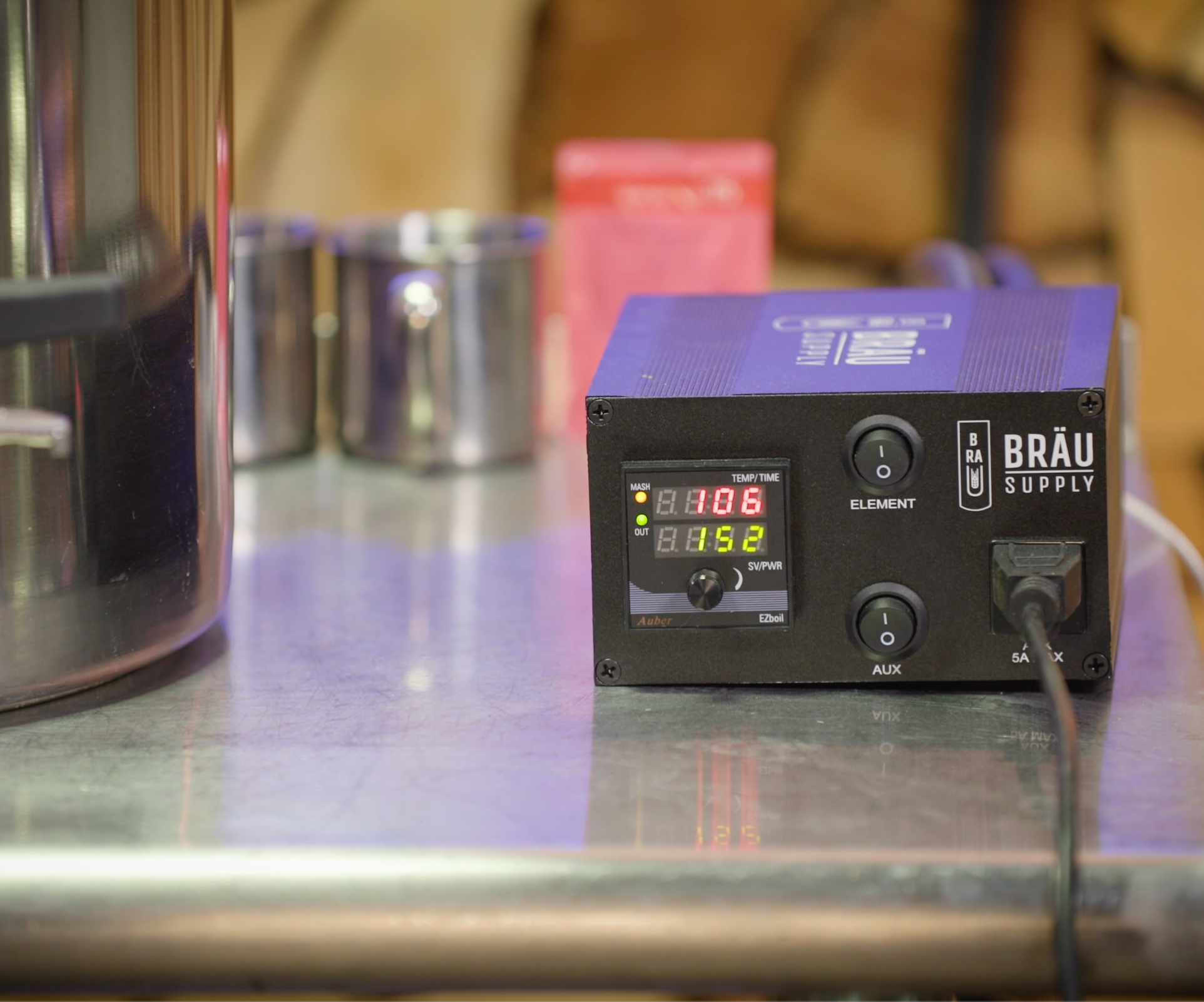

  • SV2 Controller for accurate mashing and boiling (120V system comes with the SV1 controller)
  • brew pump with quick disconnect adapters

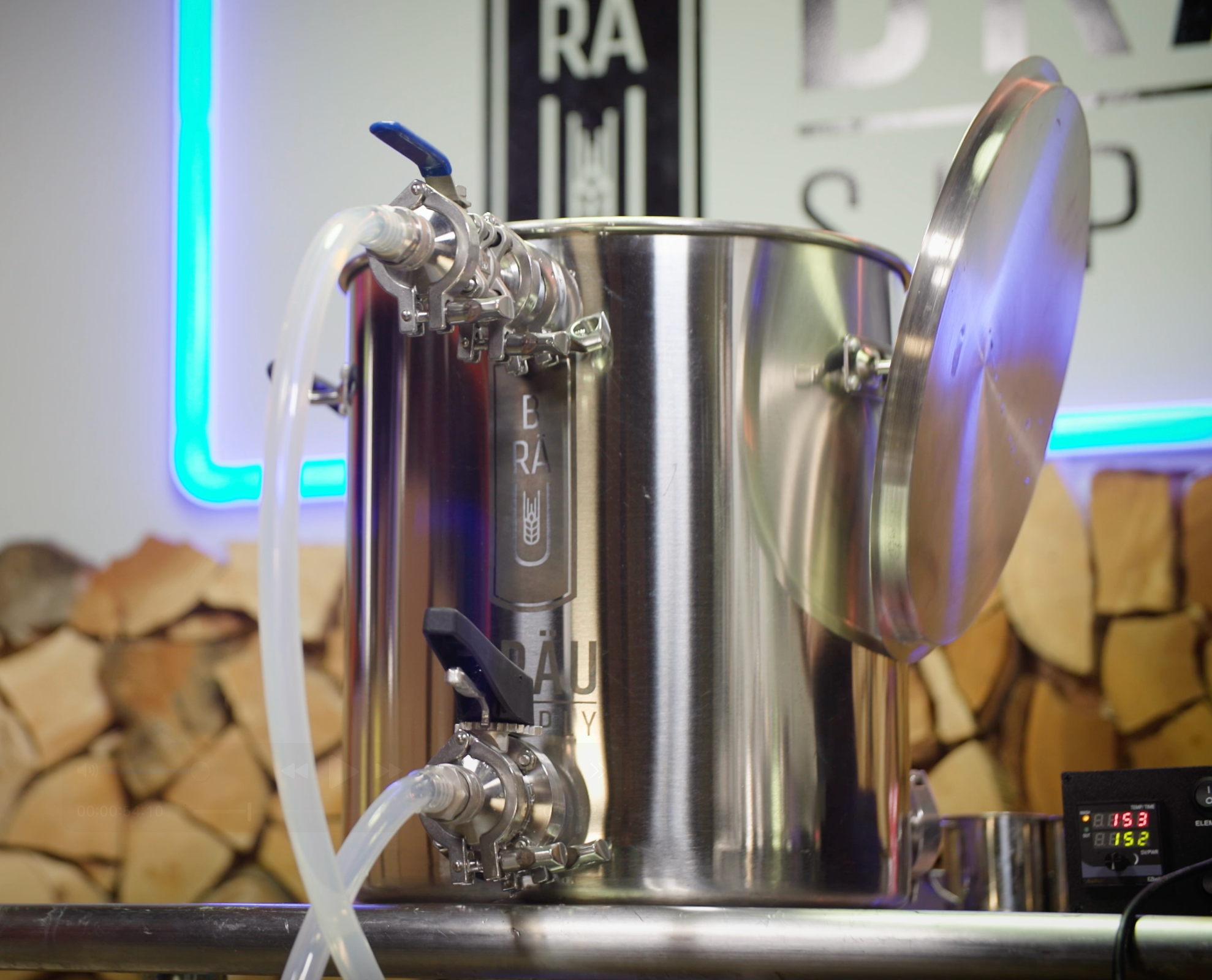

  • 10G kettle and lid
  • Mash tun false bottom and dip tube
  • Vorlauf double clamp arm
  • 1.5" Tri-clamp to quick disconnect adapter x 6
  • Quick Disconnect female to 5/8" barb adapter x 6
  • 4 m(13') silicone tubing
  • Fermenter temperature control kit
  • Water connection kit

COMPLETE SYSTEM CONTENTS

Included in the Complete System configuration:

Dimensions and Capacities

Choose the BräuPro that suits your brewing needs:

BräuPro 5 - 30L(8gal) fermenter - 35cm(13.75") diameter x 85cm(33.5") high to 100cm(39.4") height. 40L(10gal) mash tun - 35cm(13.8") diameter x 40.5cm(16") high. Brew volume - 12L(3gal) to 23L(6 gal).
