Sparge Arms Explained: Do You Need One, and Which Kind

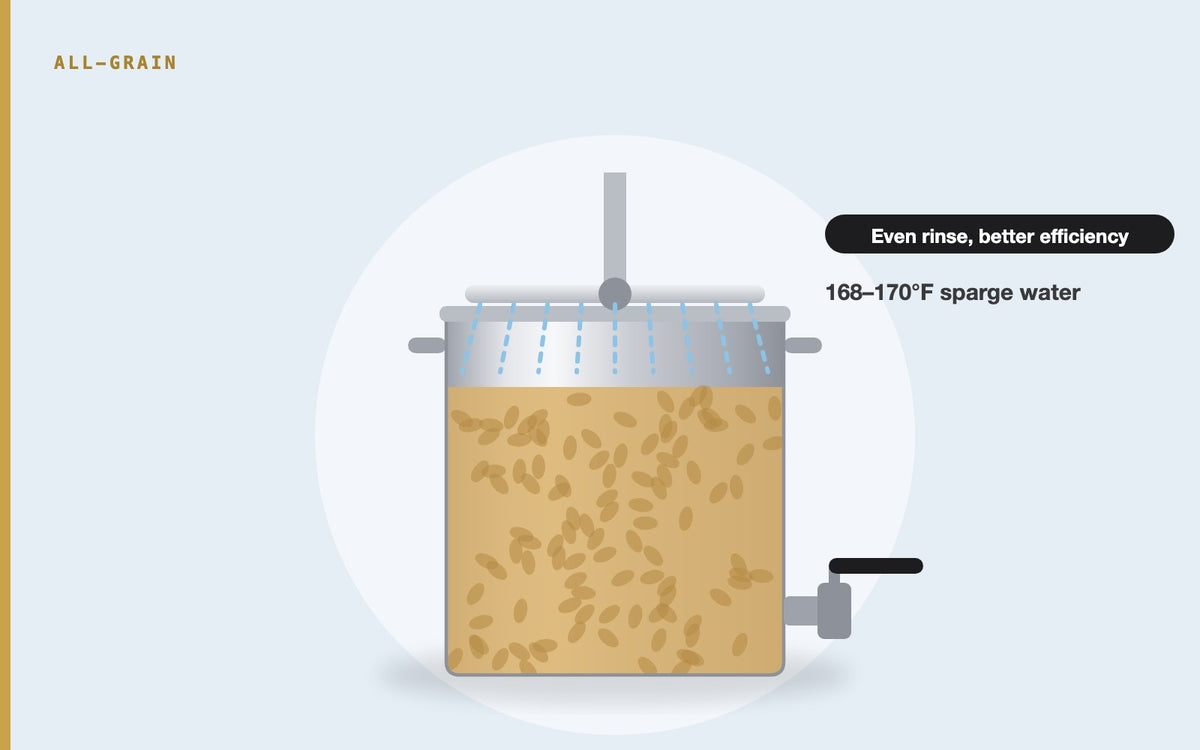

Sparging is rinsing the sugar out of the grain after the mash. A sparge arm is the fitting that puts the rinse water on top of the grain bed gently and evenly, so the water sinks through the whole bed instead of cutting one channel down the side and leaving half the sugar behind. Whether you need one depends entirely on how you sparge, so start there.

Three ways to sparge, and which need an arm

Method	How it works	Sparge arm?
Fly (continuous) sparge	Water goes on top at the same rate wort drains out the bottom, for 30 to 60 minutes	Yes. This is the case the arm was invented for
Batch sparge	Drain the mash fully, add a volume of water, stir, drain again	No. Stirring does the distribution
No sparge / full volume	All the water goes in at mash-in; drain once. What a single-vessel system does	No. More on no-sparge brewing

Fly sparging gets you the highest efficiency, typically 5 to 8 points better than batch sparging, and it is the standard on three-vessel systems like a HERMS, where the hot liquor tank feeds sparge water to the mash tun while the mash tun drains to the kettle. If that is you, keep reading. If you brew on a single-vessel Unibräu and lift the basket, you may still sparge a little by pouring water over the raised grain; a small arm helps, but it is optional.

What goes wrong without one

Pour water onto a grain bed from a hose and it lands in one spot. That spot floods, the water finds the easiest path down, and the rest of the bed sits dry. The runnings look fine, the gravity is fine for a while, and then your efficiency comes in ten points low. Channeling is invisible until you do the maths at the end. An arm spreads the water over the whole surface so the bed drains evenly from top to bottom.

The three designs

Rotating arm

Two arms spin from a central pivot, driven by the water flow, like a lawn sprinkler. Good coverage in a big round tun, and the classic look. The downsides are moving parts to clean, a minimum flow rate before it will spin, and a habit of spraying the walls when the flow is too high. Better at 20 gallons and up than at 10.

Fixed arm

A rigid stainless tube with holes drilled along the underside, sized to the kettle diameter, mounted at the upper port. No moving parts, cleans in seconds, works at any flow rate down to a trickle, which is exactly the rate a fly sparge should run at. This is what we make: a tri-clamp arm for the Unibräu's upper port, and a quick-disconnect kit in two lengths for 10-gallon and 20 to 30 gallon DrainPro mash tuns.

Ring or coil

A loop of tube with holes facing down, sitting on top of the grain. Even coverage, but it sits in the mash, so it gets buried, it is awkward to place through a small opening, and it is the hardest to clean. Common on commercial lauter tuns with a big manway, rare at home.

Sizing and mounting

• Match the diameter. A fixed arm should reach about two-thirds to three-quarters of the way across the tun. Too short and the outer ring of grain is dry; too long and it sprays the wall.
• Mount it above the water line. The arm sits at the top port, above the grain, and you keep an inch of water over the bed for the whole sparge so the water lands on liquid, not on grain. That is what stops the surface compacting.
• Feed it slowly. A fly sparge runs at about a quart a minute on a 10-gallon batch, matched to the drain rate. If the arm needs more flow than that to work (rotating arms often do), it is the wrong arm.
• Keep the sparge arm and the recirculation return separate. On a HERMS the wort recirculates back onto the bed through its own vorlauf return for the whole mash; the sparge arm only runs during the sparge. One fitting doing both jobs means one of them is compromised.

Running the sparge

1. Mash out to 168°F, recirculate ten minutes so the bed sets.
2. Open the mash tun outlet to the kettle at a slow rate. Start the sparge water at the same rate. 168 to 170°F water; hotter extracts tannin.
3. Keep an inch of water above the grain. If it drops, slow the outlet; if it rises, slow the arm.
4. Stop at your pre-boil volume, or when the runnings drop below about 1.010, whichever comes first.

Done right, that is 45 minutes of the brew day you can spend cleaning the fermenter. Lautering on a HERMS, step by step, has the full sequence with timings.

Cleaning

A fixed arm rinses under the tap; pull the end cap and run water through if a grain husk gets in. A rotating arm needs the pivot cleaned and dried. Neither should ever see wort, only water, so neither needs sanitizing.

So, do you need one?

Three-vessel system and fly sparging: yes, a fixed arm sized to the tun, and it pays for itself in grain within a year. Single vessel with a lift-out basket: a small one is a nice-to-have. Batch or no-sparge: save the money and put it toward a better chiller. Not sure which you are? Tell us your setup.
