Hop Block Filter Plate and Dip tube for Filtering hops
Accessoire · Bräu Supply

Plaque filtrante HopBlock et tube de ramassage

✓
Conçu et assemblé à Vancouver, en Colombie-Britannique. Droits, tarifs et frais de courtage prépayés sur toutes les commandes à destination des États-Unis.

Système de filtration du houblon à faible restriction et tube plongeur pour cuves Unibräu.

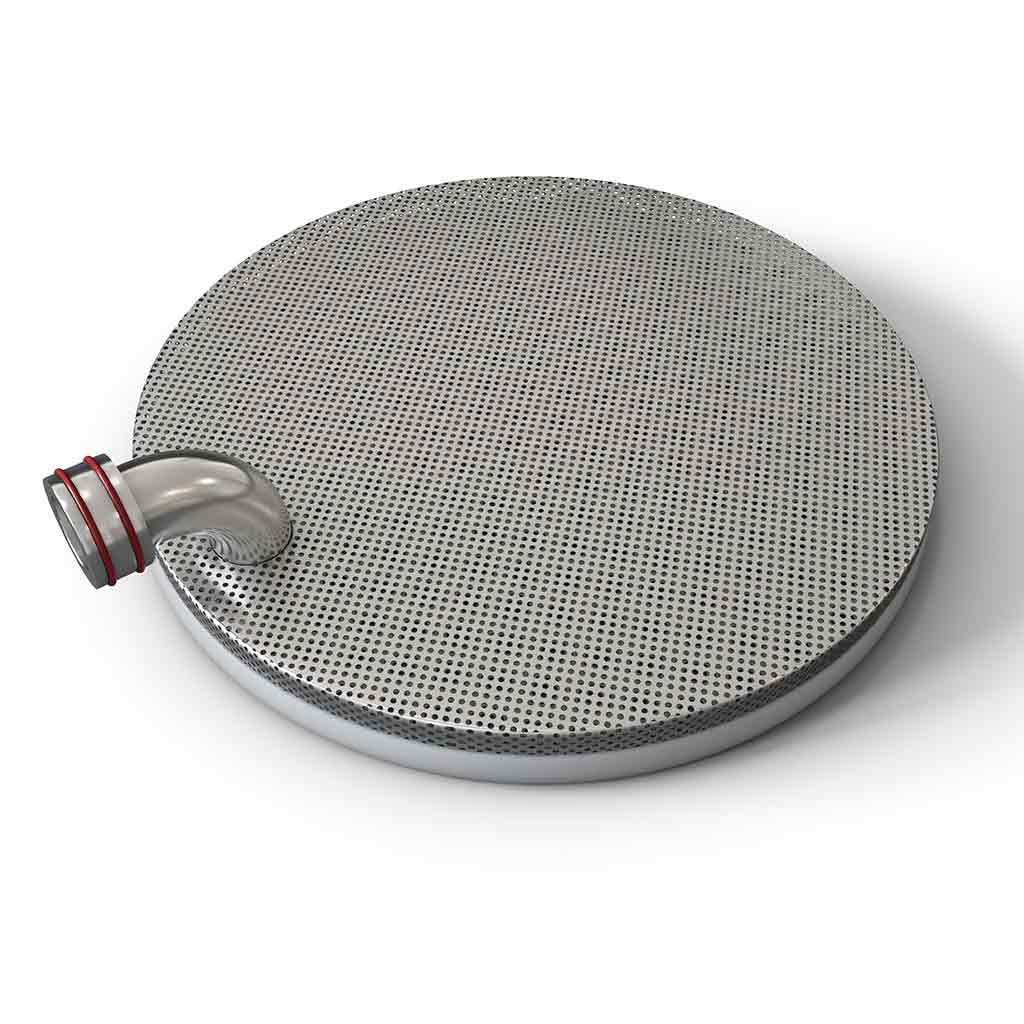

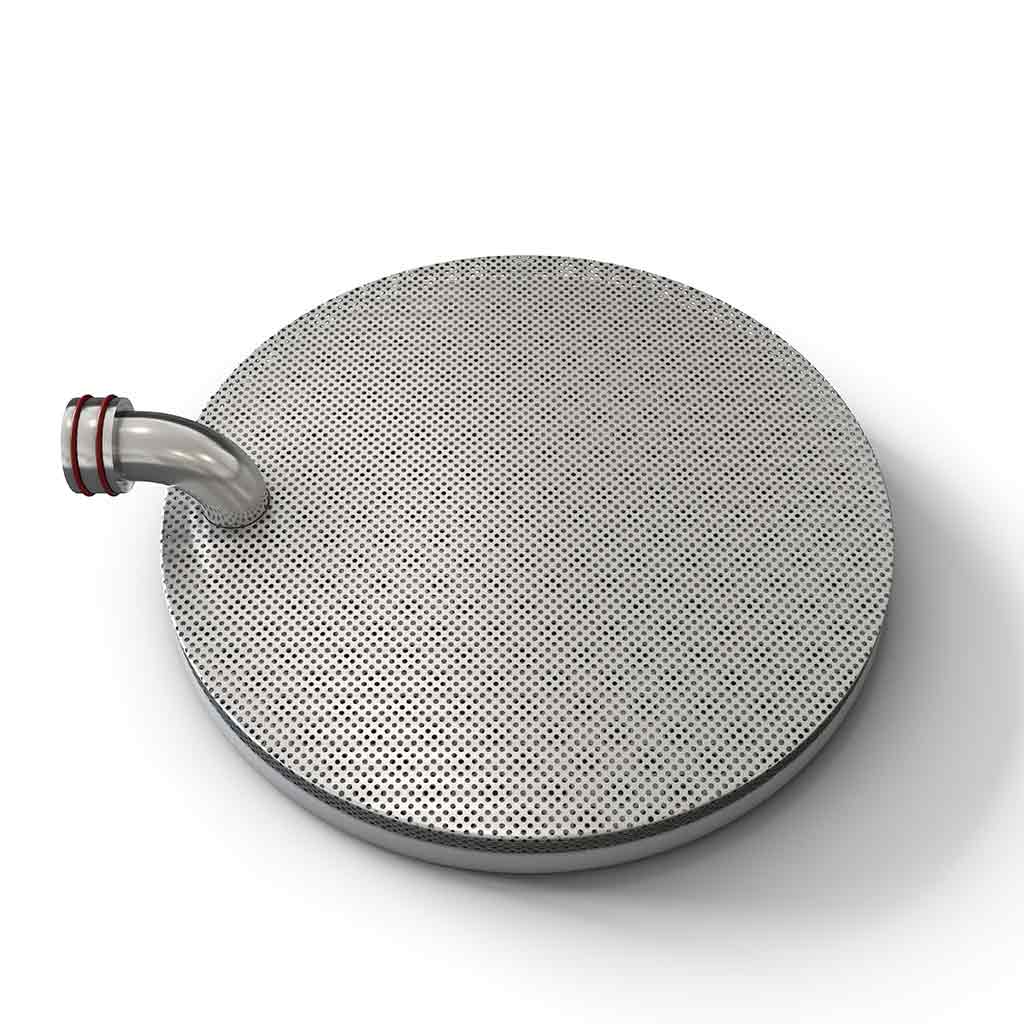

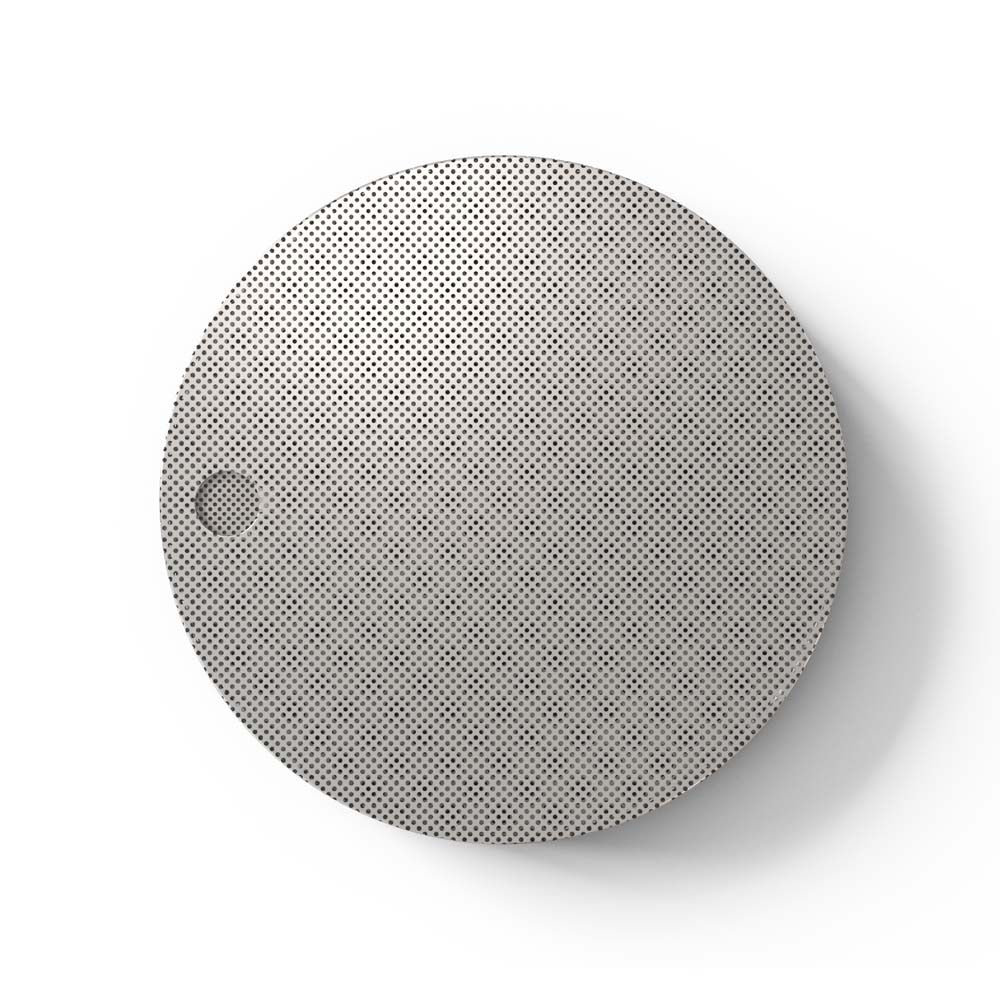

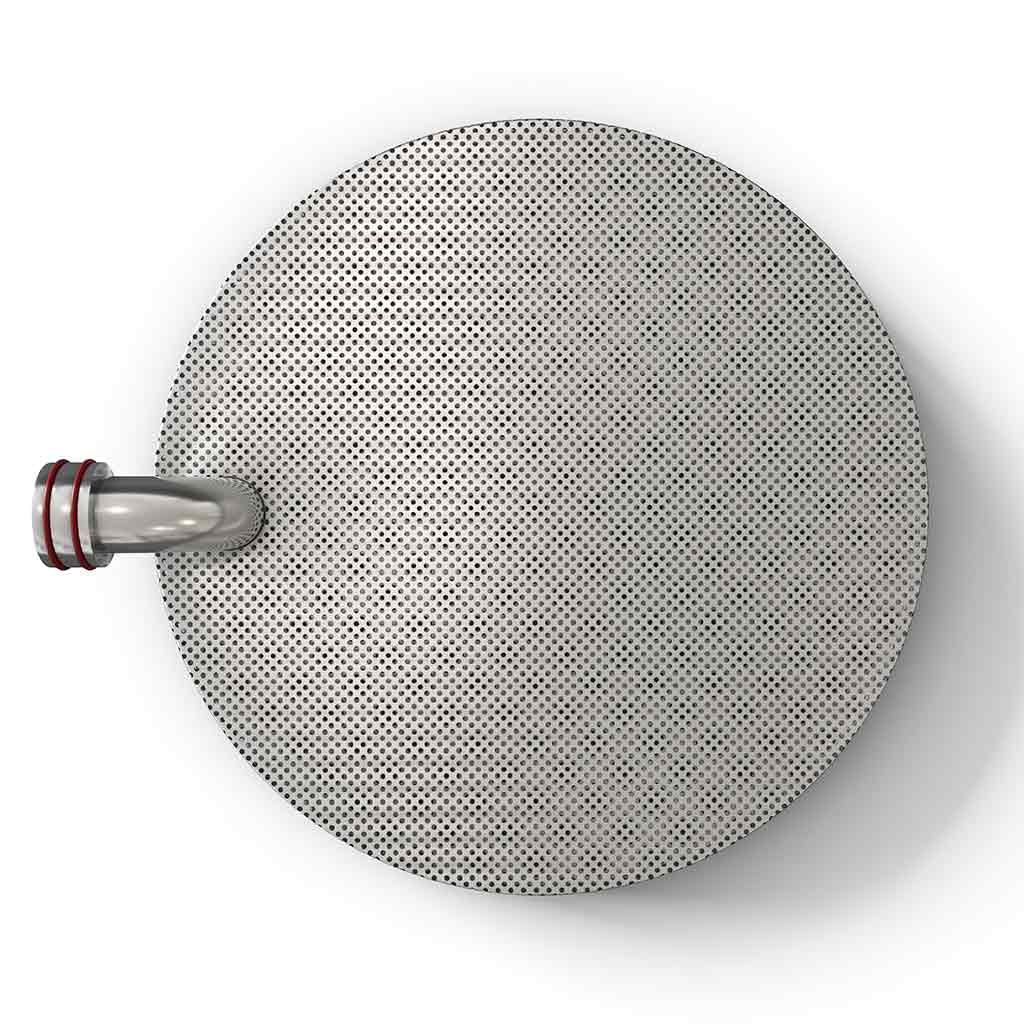

Le filtre et tube plongeur HopBlock est un système de filtration du houblon monté sur cuve, conçu pour être utilisé avec les systèmes Unibräu et les cuves d'ébullition Bräu Supply. Il remplace les paniers à houblon traditionnels et les filtres amovibles par une plaque filtrante fixe en acier inoxydable et un assemblage de tube plongeur étanche.


La plaque filtrante perforée de grand diamètre permet un débit de moût sans restriction lors du houblonnage à froid, de l'ébullition et du tourbillonnement (whirlpool), tout en retenant à la fois les houblons en pellets et en fleurs.


Caractéristiques principales






  • Plaque filtrante à faible restriction — Plaque perforée en acier inoxydable 304 assurant un débit constant sans obstruction.




  • Conception à grand diamètre — Un diamètre de 10 pouces offrant une grande surface de filtration qui minimise la restriction de débit, même avec de grandes quantités de houblon.




  • Accessible pendant l'ébullition — Le débit peut être rétabli en nettoyant légèrement la surface de la plaque si des résidus de houblon s'accumulent.




  • Tube plongeur étanche — Le tube plongeur à double joint assure un transfert de moût propre sans passage de houblon.




  • Joint en silicone monobloc — Empêche le houblon de passer sous la plaque filtrante.




  • Construction en acier inoxydable 304 — Durable, résistant à la corrosion et facile à nettoyer.




Compatibilité




  • Systèmes de brassage Unibräu Tri-clad


  • Cuves d'ébullition Bräu Supply Tri-clad uniquement




Options d'achat




  • Plaque filtrante HopBlock avec tube plongeur étanche (système complet)


  • Plaque filtrante seule, sans tube plongeur (remplacement ou utilisation autonome)







Filtre HopBlock en action avec du houblon en fleurs et en pellets :


Filtre Hop Block avec houblon



Step 1 — Option Avec tube de ramassage
$137.00Ships from Vancouver, BC · rates calculated at checkout
→
Ready to ship · most orders out in under a week
2y
2-year warranty · lifetime parts · every part replaceable
✉
Talk to a brewer, not a sales rep · email or call — real humans
Verified reviews

What our customers are saying

Real reviews from real brewers — pulled live from Judge.me.

Customer Reviews

Based on 21 reviews
76%
(16)
19%
(4)
0%
(0)
0%
(0)
5%
(1)
J
James Reneau
Epic Fail (20 Gallon HopBlock Filter)

I recently upgraded from a Unibrau 10g system to a 20g system. I chose Brau Supply because it was a modular system, and I could use all my existing Brau Supply pumps and heaters, etc. on the 20g system. I also ordered the HopBlock Filter for the 20-30G system since the one I had in my previous 10g system worked so well.

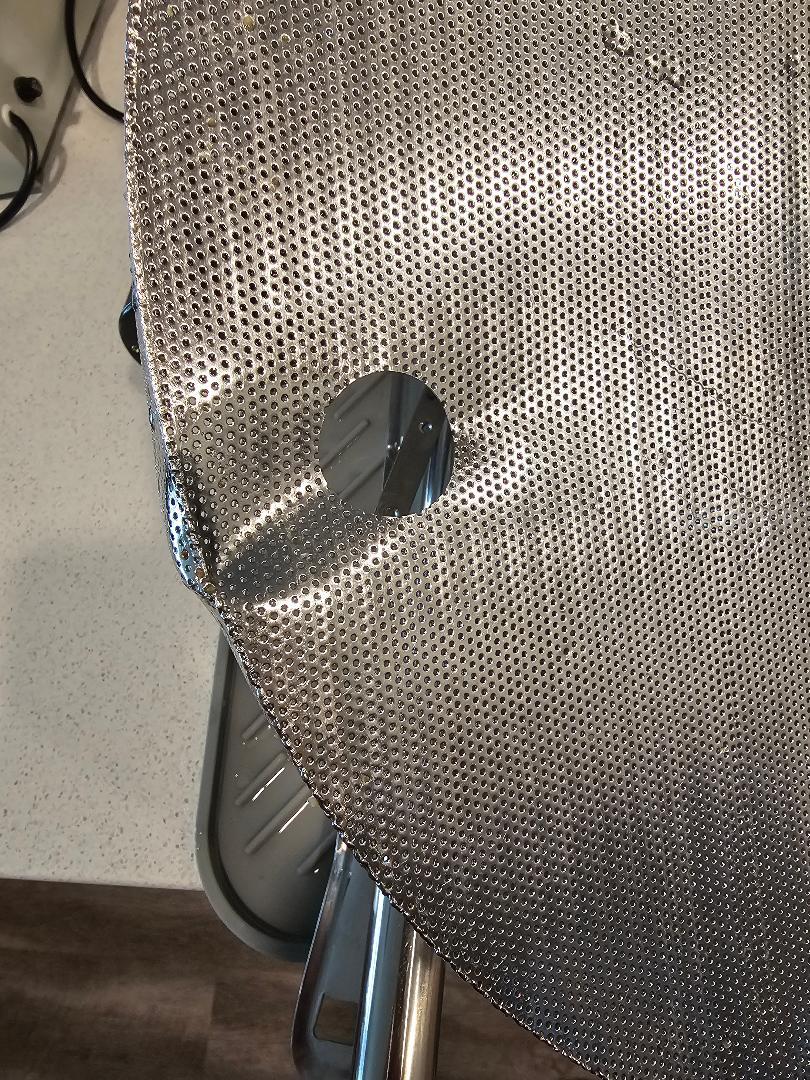

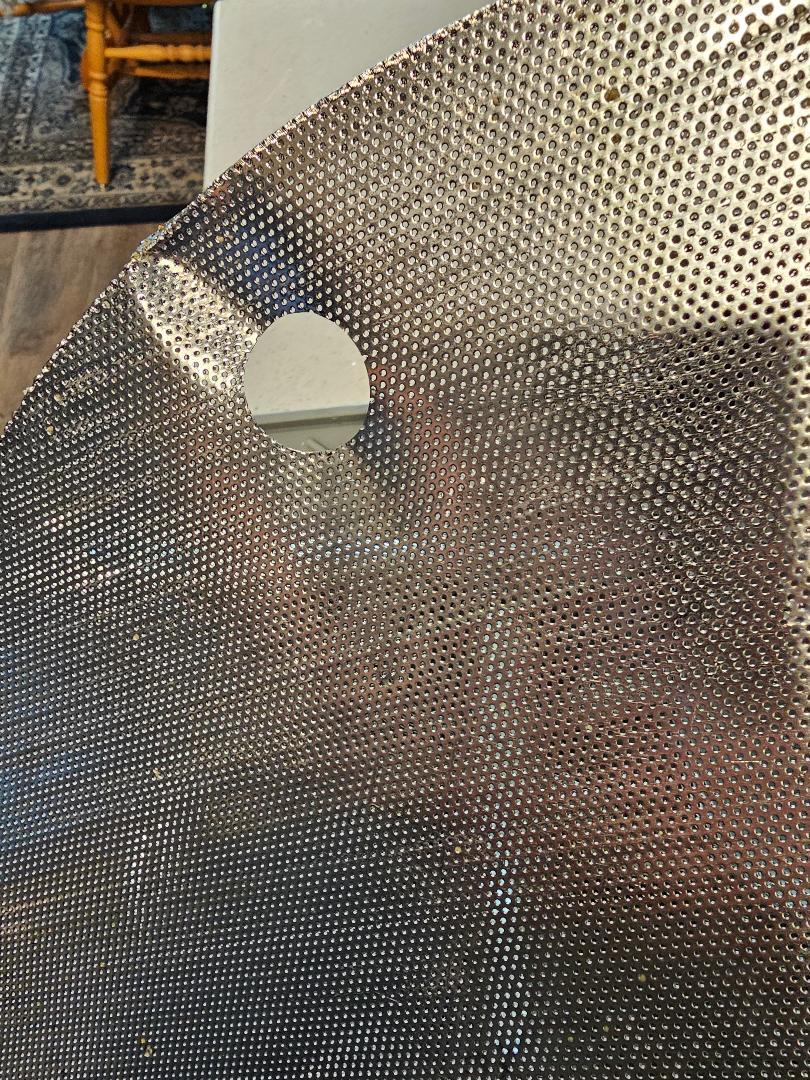

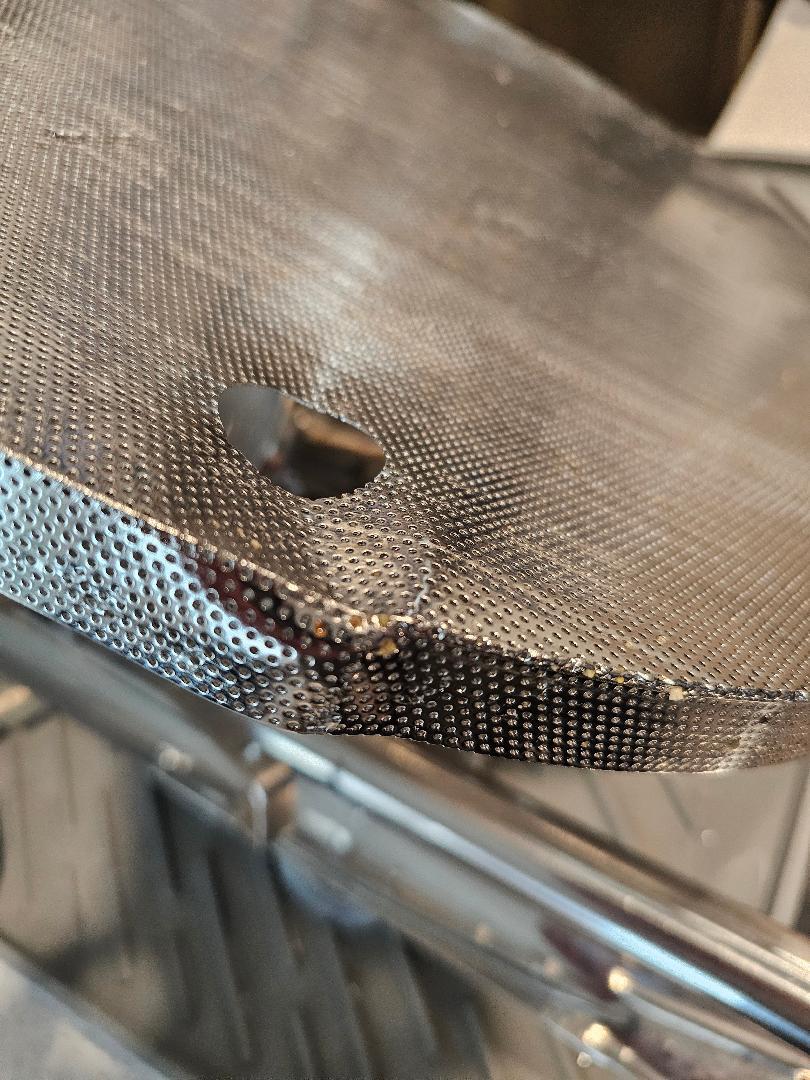

I made a simple (8.5 lbs. of grain) Cream Ale with 1 ounce of hops and used the new HopBlock filter. After I was done, I saw that the HopBlock filter had basically started to collapse. I am thinking the span is too much and it buckled. I am guessing that there needs to be more support to prevent this from happening.
I have never given anything but a 5-star rating to all of my Brau Supply product, but I cannot let this pass.

A
Anonymous
Works well

Long time Unibrau user, been meaning to purchase this for a while, finally got around to it.
Works really well, probably too well if you end up with grain in the boil as it clogs easily…I will be widening the gap on my mill a bit to try and minimize that issue…I’ve been crushing my grains finer than is recommended for the Unibrau.
Once I have everything dialed in, I expect it will be an excellent addition to my system.

M
Michael S.
Effective solution to a real bother.

Surprisingly simple solution to a common annoyance. This very effective little accessory makes a huge difference.

J
Jesse R.
HopBlock Filter Plate and Dip Tube,

This is a definite solid buy! Had it in place when brewing a batch and it really helped keeping all the floaties from going through the pump. Easy to install, easy to clean.

Highly recommend this as a buy for anyone looking to help keep the junk out of your beer when your transferring it to a fermenter or even if you're taking it up to the whirlpool arm.

R
Robbie Gilmore Jr

Thank you Robbie we’re so happy that you love your new setup!
