Pick by independent fermenter zones, not by fermenter count.
Match pump count to how many fermenter zones need independent flow rates. Two fermenters running the same temp profile can share one pump + manifold. Two at different temps (one fermenting, one crashing) need separate pumps. Most commercial cellars order one pump per fermenter to keep zones decoupled. You can also add pumps later — the BFT-67 ships with mounting holes for all 10.
1 or 2 chiller upperdecks?
The BFT-67 platform supports one or two BEF chillers mounted on top. Single deck is standard; dual deck adds primary + backup redundancy, or doubles the BTU output, or mixes models (e.g. BEF-300 + BEF-100 for capacity-stacking).
Quote reservoir alone, or bundle chiller pairing?
If you already own a compatible BEF chiller, we'll spec the upperdeck mount to fit. Otherwise we'll quote the BFT-67 + matching BEF chiller(s) as one system. Pumps + manifold + freight included in either path.
A bigger bath. More pumps. Optional redundancy.
A BEF chiller on its own has an integrated 17-gallon bath and 1–2 pumps. That's enough for 2–4 fermenters. When you scale past that — more fermenters than pumps, more BTU than one chiller can handle, or a need for primary + backup redundancy — the BFT-67 is the platform you bolt that BEF chiller onto.
Bigger thermal mass = stable cooling
4× more buffering than integrated bath67 gallons of glycol versus 17 = roughly 4× the thermal mass. Short compressor cycles, supply temp barely budges even when 6 fermenters cold-crash at once, and the chiller lives at moderate duty instead of redlining.
Reservoir absorbs demand spikesScale pumps + chillers independently
Up to 10 pump zones · 2 chiller decksEach pump runs independently — one fermenter zone gets its own flow rate, alarm, on/off cycle. Add pumps over time as your fermenter count grows. Add a second chiller deck for redundancy or to double your BTU output. Mix models (BEF-100 + BEF-300).
Up to 10 pump zonesPair with any BEF-04 or larger.
The BFT-67 is the upgrade path for the entire BEF line above the Compact tier. NOT compatible with BEF-02 / BEF-03 — the Compact Series uses its own integrated 4.5 gal bath and can't be upper-decked.
BEF-04 / -05 / -075
1 chiller + 4–8 pumpsUpperdeck-compatible. Typical pairing: one chiller + BFT-67 + 4–8 pumps for a serious homebrew / 1 BBL operation running multiple fermenters.
From $1,949BEF-100 / -150
1 chiller + 6–10 pumpsUpperdeck-compatible. Typical pairing: one chiller + BFT-67 + 6–10 pumps for a 5–10 BBL commercial hall. Optional second deck for redundancy.
From $4,299BEF-300 / -500
1–2 chillers + up to 10 pumpsThe standard pairing — most BEF-300/-500 installs include a BFT-67 by default. Dual-deck installs (BEF-300 + BEF-500 on one BFT-67) are common at 40 BBL+ halls.
Quote · See IndustrialBFT-67 specs.
67 US gal · insulated
41" W × 29" D × 22" H (bath only — chiller upperdecks add height)
130 lb
~690 lb (filled with glycol + water mix)
Up to 10 × 50 GPH independent circulators (60 GPH head pressure at 26 ft)
120V · 60Hz · 6.5A per pump running · NEMA 5-15P plug each
Up to 2 upperdecks per reservoir · supports BEF-04 through BEF-500
Food-safe propylene glycol + water mix (~30% propylene) · BYO fluid
4–6 weeks · LTL palletized · delivery appointment
Quote-based QUOTE · pricing varies by pump count + chiller pairing + freight
Compatible BEF chiller tiers.
High Capacity (120V), Production (220V plug), or Industrial (220V hardwired). The BFT-67 fits all three. Not compatible with the Compact Series (BEF-02/03).
About the BFT-67.
Do I need a BFT-67?+
Not unless you're scaling. The integrated 17 gal bath on a BEF-04 or larger handles 2–4 fermenters fine. Step to a BFT-67 when: (1) you've got 4+ fermenters running back-to-back, (2) you want more than 2 independent pump zones (commercial cellars often need 6–10), or (3) you want primary + backup chiller redundancy on one reservoir.
How many pumps should I order?+
Match pump count to independent fermenter zones, not fermenter count. If two fermenters always run the same temp profile, they can share one pump and a manifold. If they need different temps independently (one fermenting, one cold-crashing), each needs its own pump. Most commercial cellars order one pump per fermenter to keep zones decoupled. You can also add pumps later — the BFT-67 ships with mounting holes for all 10.
Which chiller should I pair it with?+
By BTU load, sized for your peak demand (worst-case: all fermenters crashing at once). Rough sizing: BEF-04 for 2–3 BBL load, BEF-05 for 3–5 BBL, BEF-075 for 5 BBL, BEF-100 for 5 BBL hall, BEF-150 for 10 BBL, BEF-300 for 20 BBL, BEF-500 for 40 BBL. We size it as part of the quote — submit the form with your fermenter count + sizes and we'll come back with a recommendation.
Can I run two chillers on one BFT-67?+
Yes — the BFT-67 supports two chiller upperdecks. Two common configurations: redundant (BEF-300 + BEF-300 — either one carries the load if the other goes down) or capacity-stacked (BEF-300 + BEF-100 — total BTU output = 36,679 for very large halls). You can also mix tiers (BEF-150 + BEF-100) if that's what your hall needs.
What's the install look like?+

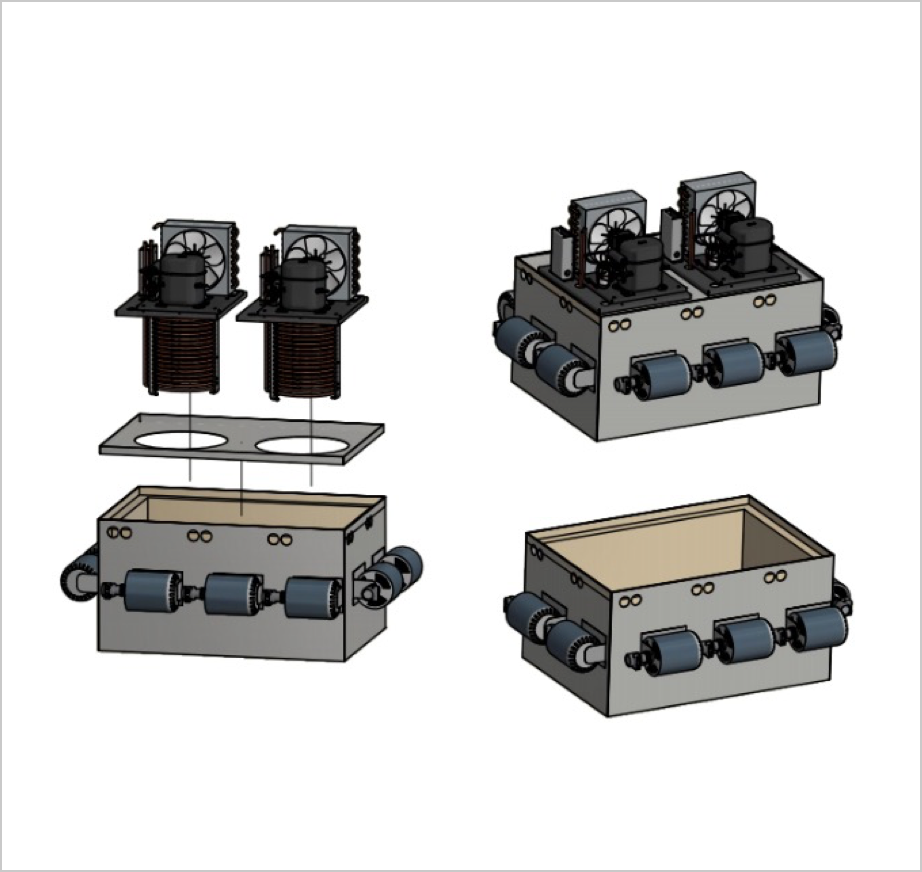

The BFT-67 ships as three components: the insulated bath, the pump deck (drilled for your selected pump count), and any chiller upperdecks. Assembly is bolt-together — typically half a day on-site with a brewery contractor. The pumps run on 120V NEMA 5-15 outlets (one per pump); the chiller(s) run on whatever voltage they spec (120V or 220V). Your contractor handles the glycol manifold + insulated trunk to fermenters separately.
How much glycol fluid?+
For a BFT-67 setup, plan on ~20 gallons of pre-mixed propylene (at 30% propylene to water) — that's 67 gal bath × 30% propylene = ~20 gal of propylene, plus your fermenter jackets, coils, and trunk lines. We send a fluid-volume calculation as part of the quote so you know exactly how much to order from your local HVAC supplier.
Lead time & shipping?+
4–6 weeks from order — the BFT-67 is made-to-order with your selected pump count and chiller mount drilled. Ships LTL palletized with a delivery appointment; the bath alone weighs 130 lb and the full crate runs ~250 lb depending on pump count.
Warranty?+
1-year warranty on the reservoir + pump deck through MCED Systems direct. Pumps are individually replaceable — if one goes down, swap it without taking the whole system offline. Standard pump motors are off-the-shelf and stocked.
67 gallons.
Up to 10 pump zones. Modular by design.
MCED BFT-67 — the platform you upgrade to when you outgrow the integrated 17-gal bath. Pairs with any BEF-04 or larger. Manufactured in Canada by MCED. 1-year warranty.
